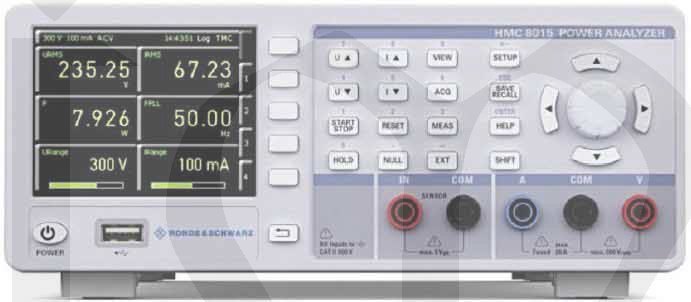

HMC-8015
- Multifunctional power analyzer for wired measurements up to 100kHz
- Developed in Germany and manufactured in Europe according to highest quality and production standards
- 6 + 1 analyzer with state of the art functionality and highest in class resolution
- Covering a large application area from electronics design and development to service and production environments
- Compact footprint bench-top combining features of seven different instruments at a best in class performance
- Brilliant QVGA TFT display for excellent readability combined with a freely configurable graphical user interface
- Lowest basic accuracy in its class → 0.05% of reading
- Automatic AC/DC detection and switching
- Excellent scaleability through options and accessories
- Well-balanced sampling rate and bandwidth ratio to never miss any waveform details
- Fanless design for silent operation
- Very fast boot time → less than 8s
- Huge variety of interfaces
- Future-proof investment: long-term support and new functions via firmware upgrades
Applications
Consumption analysis of on-grid devices
Power analysis for embedded systems
Power electronics R&D
Quality control in manufacturing
Standards testing in R&D and production
| Bandwidth | DC to 100 kHz |
| Sampling Rate | 500 kSample/s |
| Resolution | 2x 16-bit simultaneous sampling (voltage and current) |
| Voltage Input | up to 600V rms |
| Current Input | up to 20A rms |
| Basic Accuracy | 0.05% of reading |
| Display | Brilliant color TFT |
| 1+1 Datalogging | CSV to USB stick or remotely via interface |
| 2+1 Oscilloscope | Oscillographic waveform chart (opt.) |
| 3+1 Spectrum Analyzer | Harmonics as bar chart or table view (opt.) |
| 4+1 Energy Meter | Real-time integrator |
| 5+1 Production Tester | Limit testing with PASS-FAIL (opt.) |
| 6+1 Policy Tester | Energy Star, EN50160, EN50564, EN61000-3-2, IEC62301 (opt.) |
| Nature of the network : | Single-phase |
|---|---|
| Power/energy type : |
Active power (W) Reactive power (VAR) Apparent power (VA) Active energy (Wh) |
| AC/DC Max voltage (V) : | 600V RMS |
| AC/DC Max current (A) : | 20A RMS |
| Voltage range : | DC-600V RMS |
| Frequency range (Hz) : | DC-100kHz |
| Measurement functions : |
Harmonics, THD Frequency Inrush Voltage Current Power Factor (Cos Phi) |
| Safety Level : | CAT II |
| Safety Overvoltage : | CAT II 600V |
| USB : | Yes |
| Ethernet (LAN) : | Yes |
| Lxi compliant : | Yes |
| GPIB : | In option |
| Additional Characteristics : | Compliance with IEC62301 & other policy testing standards with HVC153 option. |
| Dimension (HxWxD) (mm) : | 88x222x280 mm |
| Net Weight : | 3.25 kg |
| Standard Manufacturer Warranty : | 2 YEARS (+1 YEAR*) |
